VORTEX PILOT GAS HEATER (VPGH)

The Vortex Pilot Gas Heater (VPGH) is an emissions free, energy saving, and maintenance free alternative to catalytic pilot gas heaters, and electric pilot gas heaters. The VPGH protects pilot operated regulators from freeze off at gas pressure regulation stations and has applications at CNG and LNG stations. The Vortex Pilot Gas heater is Class 1, Division 1 explosion proof device that meets and/or exceeds all federal and state requirements for regulator station design and applications. Since introduction in 2001 the VPGH has been applied in all types of natural gas applications: farm taps, district regulator stations, town border stations, power plant combustion turbine fuel gas, ethanol production plant fuel gas delivery, CNG stations, and LNG stations.


Vortex Pilot Gas Heater Features:

  • Adds up to 90°F to the pilot supply gas

  • Heats pilot gas as an outcome of routine gas pressure reduction in the vortex tube

  • Not sensitive to wet feed gas

  • No lost gas.

  • No moving parts.

  • No chance of overheating.

  • No maintenance, EVER.

  • Easy to install or retrofit in new or existing facilities.

  • Working pressure is 1500 psig or 100 bar.

  • Available in 2 designs that can work with any currently available pilot gas pressure regulators (PR).

  • Single Path (VPGH-SP) has a single heating chamber to serve one pilot at a time.

  • Dual Path (VPGH-DP) can simultaneously serve two pilots.

Stainless steel cylindrical industrial component with multiple inlet and outlet fittings.
Download Bulleitn
Close-up view of industrial piping system with valves, gauges, and metal pipes outdoors on gravel ground, with trees and a chain-link fence in the background.

VPGH - (Dual Path)

An industrial pipeline system with green pipes, valves, gauges, and a large circular valve cover, located outdoors on a gravel surface with trees and a chain-link fence in the background.
Industrial piping system outside, with gray pipes, valves, gauges, and a large horizontal tank, surrounded by gravel and a chain-link fence.
Industrial equipment and piping in front of a beige metal building with gravel ground and overcast sky.

VPGH - (Single Path)

A technical diagram of a platinum natural gas solution system showing pressure and component connections, including filters, regulators, and pressure gauges.
A technical schematic diagram of a gas regulation system with various components, pipes, and pressure labels, including a motor, sensors, filters, and pressure indicators.

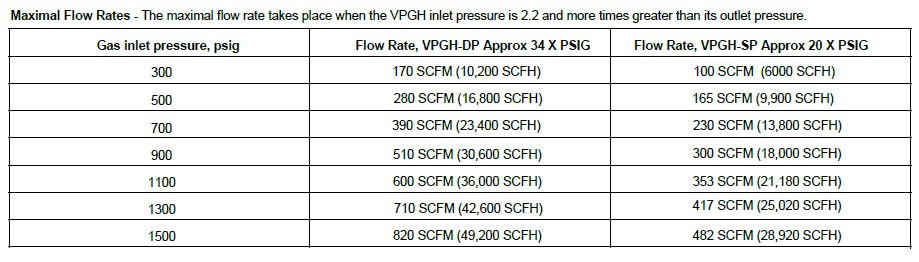

A table showing maximum flow rates in various gas inlet pressures for VP GH-DP and VP GH-SP, with pressure levels from 300 to 1500 psig and their corresponding flow rates in SCFM.
Diagram of a two-stage pressure cut system with various controllers, filters, and pressure indicators, showing flow paths with color-coded lines representing different pressure stages and control elements labeled with pressure measurements and component identifiers.
A table showing the relationship between inlet gas pressure, outlet gas pressure, and pilot gas temperature net increment in Fahrenheit, with two sections detailing theoretical calculations and measured experimental values.
Close-up of a silver gas pipeline with various valves and labels, including a yellow sticker indicating 'Second Stage Pilot Gas Out' and a white diamond-shaped label with 'Pt', set against a background of trees, power lines, and a bright blue sky.
Industrial piping system with valves and gauges outdoors, secured by a metal fence, on gravel ground near a beige metal building with electrical conduit.

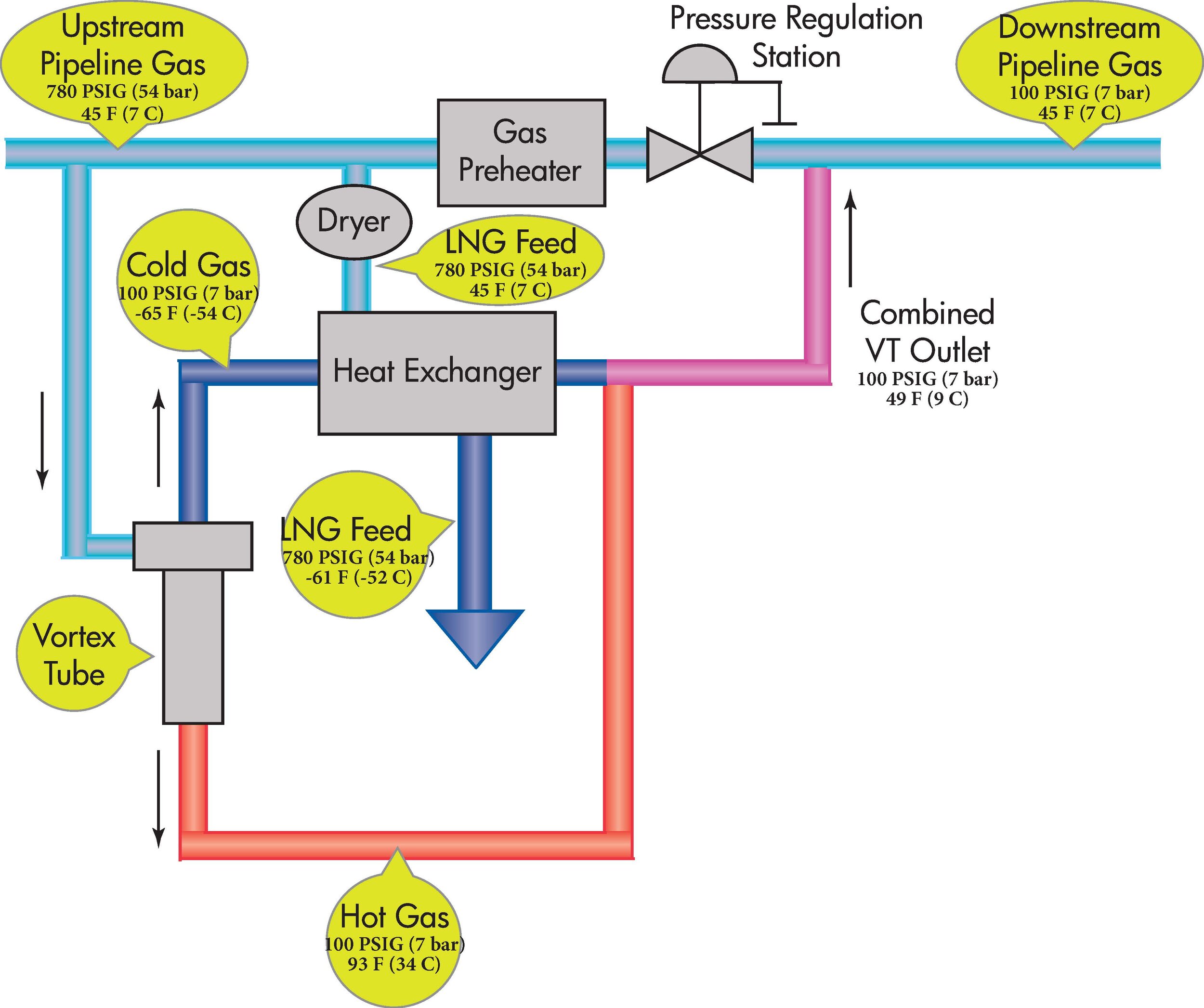

Vortex LNG Precooling Schematic

UVI-Vortex LNG Gas Precool Diagram_5-3-18-Eng-Metric.jpg
LNG Energy Savings Case Study
